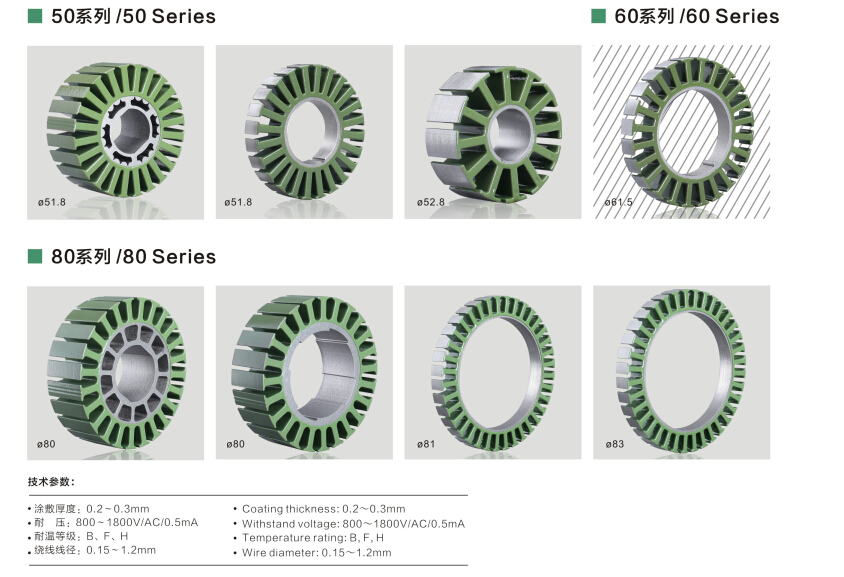

50&60 series of Outrunner BLDC Motor stator  and rotor

We are leading manufactures of the professional Brushless dc motor stator core lamination more than 8 years and we have been in the motor field more than 20 years.  Any customization according to the technical drawing would be much preferable.

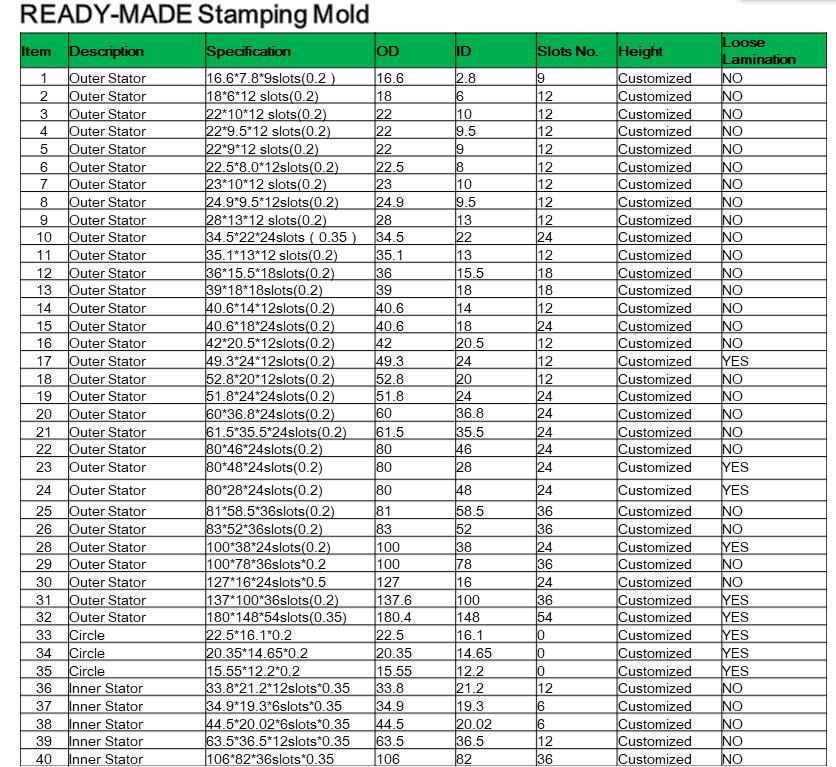

  To provide the convenience and help for the customer to develop their new project and finish the test, a series of the already built mold of the stator models has been manufactured . it would be benefit for the customer to lower the cost in the earlier stage of the project and verify the motor performance, this would be the solid foundation for building the production  mold .

our services as below：

1. BLDC Motor stator stamping and lamination

2. Brushless dc motor customization and stamping mold design

3. bldc motor stator insulation epoxy coating.

4. BLDC motor stator coil winding services （when needed）

5. motor design assistance with simulation and

Specification:

Coating Thickness：0.2-0.3mm

Withstand Voltage：800-1800V/AC/ 0.5mA

Temperature Rating： B、F、H

Wingding Wire Diameter： 0.15-1.2 mm

More details please contact us to get technical drawings.
