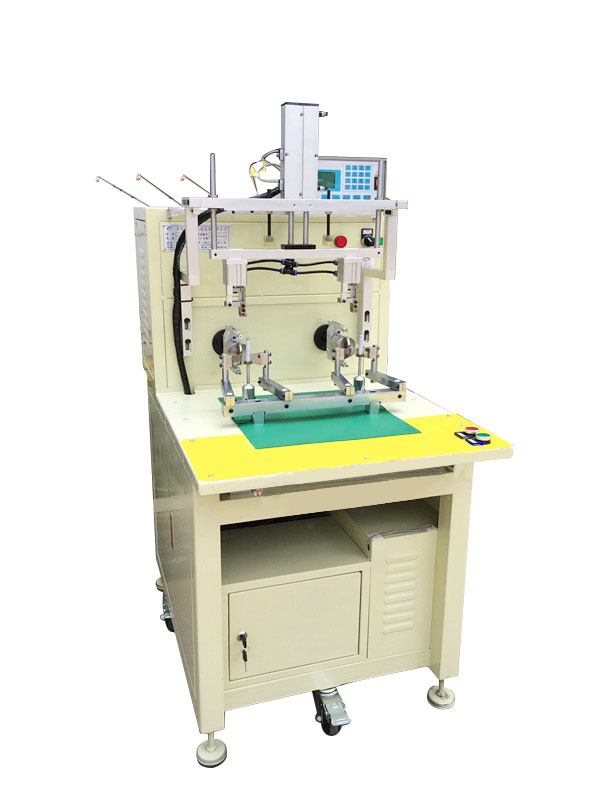

Outer Stator Coil Winding Machine CY-305 Features&Benefits
1. PLC control system with memorable function and touch screen, easy to operate. 2. Fully automation with coil and winding, tooling adjustment, wire cutting. 3. High effeciency with 2 station and reasonable price 4. Lower copper wore waste 5.Finished automatic cutting. 6. It is much suitable for the stators winding coils making ofthree phases motor and two poles motor

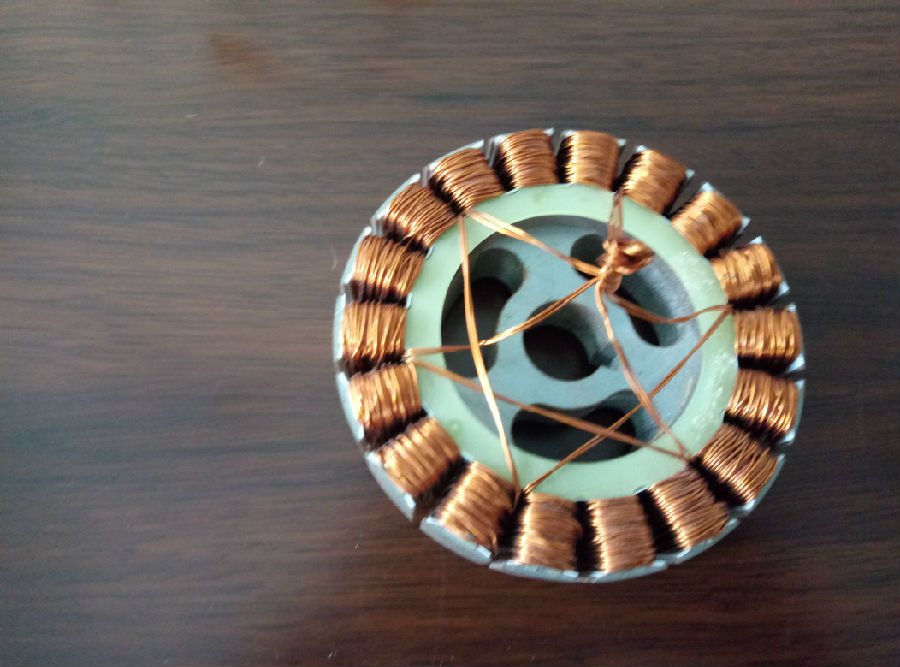

Stator Sample:
Specification List:
| Model | CY204 | CY204S | CY206 | CY208 | CY302 | CY305 | | No. of working station | 2 | 2 | 1 | 2*4 | 2 | 2 | | Pole No. appplied | 4、6、12 | 4 | 4-36 | 4-36 | 4、6、12 | 4-36 | | Power type | AC220V, 50Hz | AC220V, 50Hz | AC220V, 50Hz | AC 380V 50Hz | AC220V, 50Hz | AC220V, 50Hz | | Power |
|
|
| 6.25kw |
|
| | RPM Speed | 0-500 | 0-500 | 0-500 | 0-650 | 0-4500/0-6000 | 0-1500 | | stator core applied | OD(mm) |
|
| 12-100mm | 20-100mm | Ф12-Ф180mm |
| | Height(mm) | 10-45 | 10-45 | 10-80 | 5-70mm | 3-30mm | 1-50mm | | Slots No. | 2-24 | 2-12 | 2-24 | 2-36 | 2-24 | 2-24 | | Copper wire Diameter | 0.08-0.4 | 0.08-0.45 | 0.08-1.2mm | 0.08-0.8mm?
Ф0.08-Ф1.2mm | Ф0.04-Ф0.15mm / Ф0.15-Ф0.45mm | 0.1-0.5mm(33 wire canb e coiled the same time) | | Load/unload type | Manual | Manual | Manual | Manual | Manual | Manual | | Adjust time | 10s | 10s | 5s | 8s/16s | 5s | 5s | | Dimension (W*T*H mm) | 1800*860*1320 | 1800*860*1320 | 800*800*1500 | 850*1000(/1800)*1600 | 1000*400*1500/1170*840*1230 | 1260*650*1150 | | Weight(kg) | 500 | 300 | 350 | 500 | 120/180 | 350 | | Air pressure | 6kg/cm2 | 6kg/cm2 | 6kg/cm2 | 7kg/cm2 | 6kg/cm2 | 6kg/cm2 |
Application | Electrical tools, household applicance, medical qeuipment | Electrical tools, household applicance, medical qeuipment | Electrical tools, household applicance, medical qeuipment | Stepping motor, brushless motor, fans motor, no-blade fans motor, other types of DC motors | Brussless motors, CD-ROM, DVD-ROM, cooling fans motors, 5 slots stators | Aviation models, toys, industiral areas motors | Customization service:
Differenct stator core dimension, Copper wire diameter, slots No., Pole No exceed our specification sheet |
|
