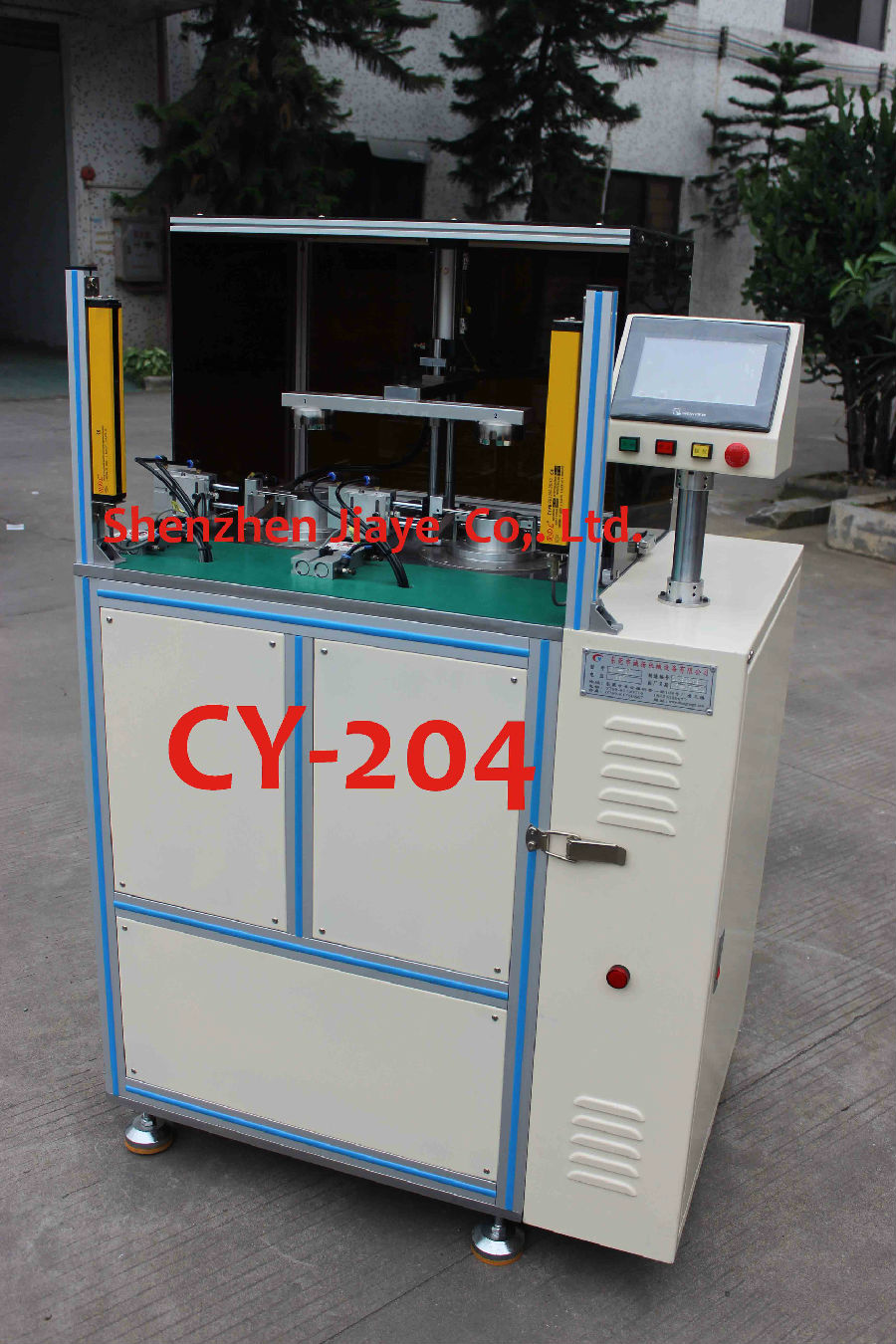

CY-204 BLDC Stator Coil Winding Machine
Features&Benefits
1. PLC control system wth memorable functionand touch screen, easy to operate. 2. Fully automation with coil and winding, tooling adjustment and wire cutting. 3. High effeciency with 8 station 4. Lower copper wire waste 5.Finished automatic cutting. 6.easy to set parameter, failure alarm are available.

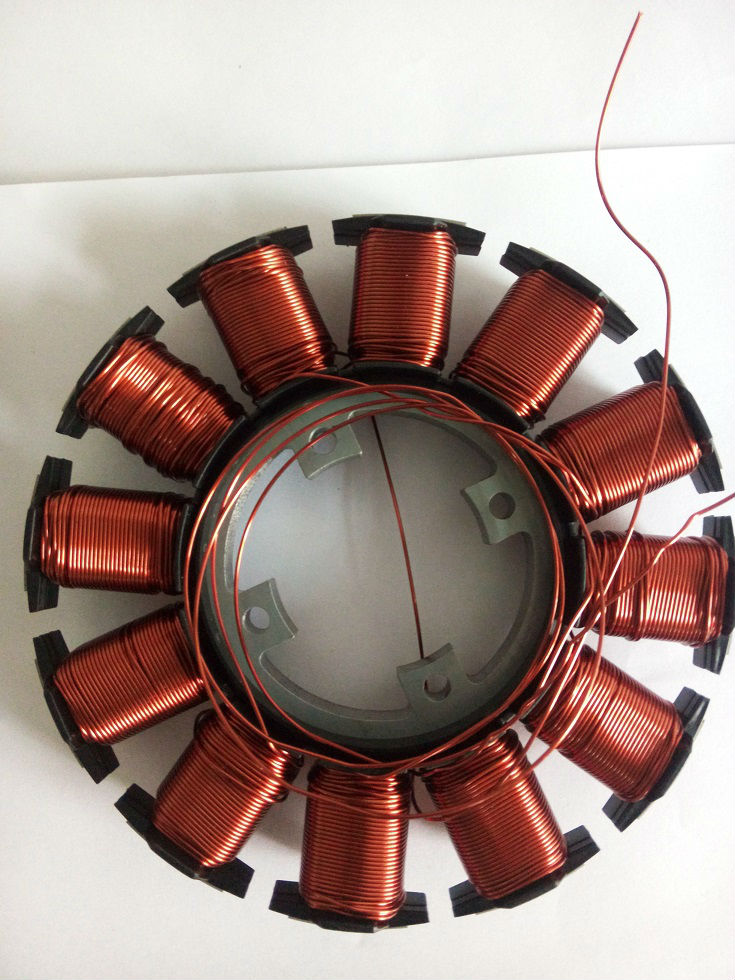

Stator Coil Sample
Specification List:
| Model | CY204 | CY204S | CY206 | CY208 | CY302 | CY305 | | No. of working station | 2 | 2 | 1 | 2*4 | 2 | 2 | | Pole No. appplied | 4、6、12 | 4 | 4-36 | 4-36 | 4、6、12 | 4-36 | | Power type | AC220V, 50Hz | AC220V, 50Hz | AC220V, 50Hz | AC 380V 50Hz | AC220V, 50Hz | AC220V, 50Hz | | RPM Speed | 0-500 | 0-500 | 0-500 | 0-650 | 0-4500/0-6000 | 0-1500 | | stator core applied | OD(mm) | Φ12-100mm | Φ12-100mm | Φ12-100mm | Φ20-100mm | Ф12-Ф180mm | Ф20-Ф180mm | | Height(mm) | 10-45 | 10-45 | 10-80 | 5-70mm | 3-30mm | 1-50mm | | Slots No. | 2-24 | 2-12 | 2-24 | 2-36 | 2-24 | 2-24 | | Copper wire Diameter | Φ0.08-0.4 | Φ0.08-0.45 | Φ0.08-1.2mm | Φ0.08-0.8mm/
Ф0.08-Ф1.2mm | Ф0.04-Ф0.15mm / Ф0.15-Ф0.45mm | 0.1-0.5mm(33 wire canb e coiled the same time) | | Load/unload type | Manual | Manual | Manual | Manual | Manual | Manual | | Adjust time | 10s | 10s | 5s | 8s/16s | 5s | 5s | | Dimension (W*T*H mm) | 1800*860*1320 | 1800*860*1320 | 800*800*1500 | 850*1000(/1800)*1600 | 1000*400*1500/1170*840*1230 | 1260*650*1150 | | Weight(kg) | 500 | 300 | 350 | 500 | 120/180 | 350 | | Air pressure | 6kg/cm2 | 6kg/cm2 | 6kg/cm2 | 7kg/cm2 | 6kg/cm2 | 6kg/cm2 |
Application | Electrical tools, household applicance, medical qeuipment | Electrical tools, household applicance, medical qeuipment | Electrical tools, household applicance, medical qeuipment | Stepping motor, brushless motor, fans motor, no-blade fans motor, other types of DC motors | Brussless motors, CD-ROM, DVD-ROM, cooling fans motors, 5 slots stators | Aviation models, toys, industiral areas motors | Customization service:
Differenct stator core dimension, Copper wire diameter, slots No., Pole No exceed our specification sheet |
|
