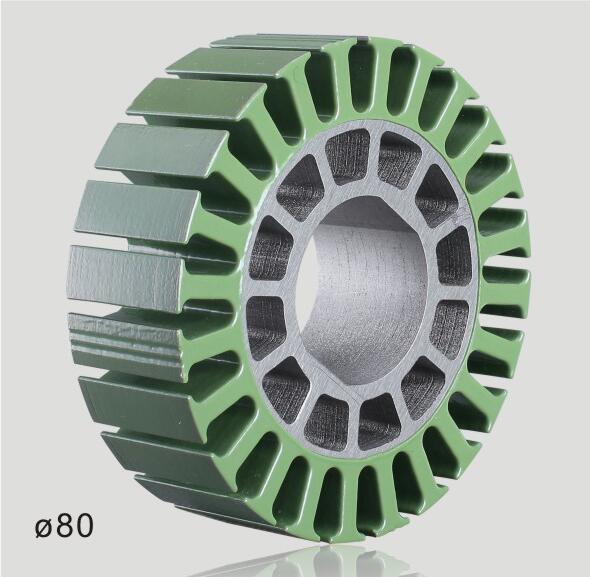

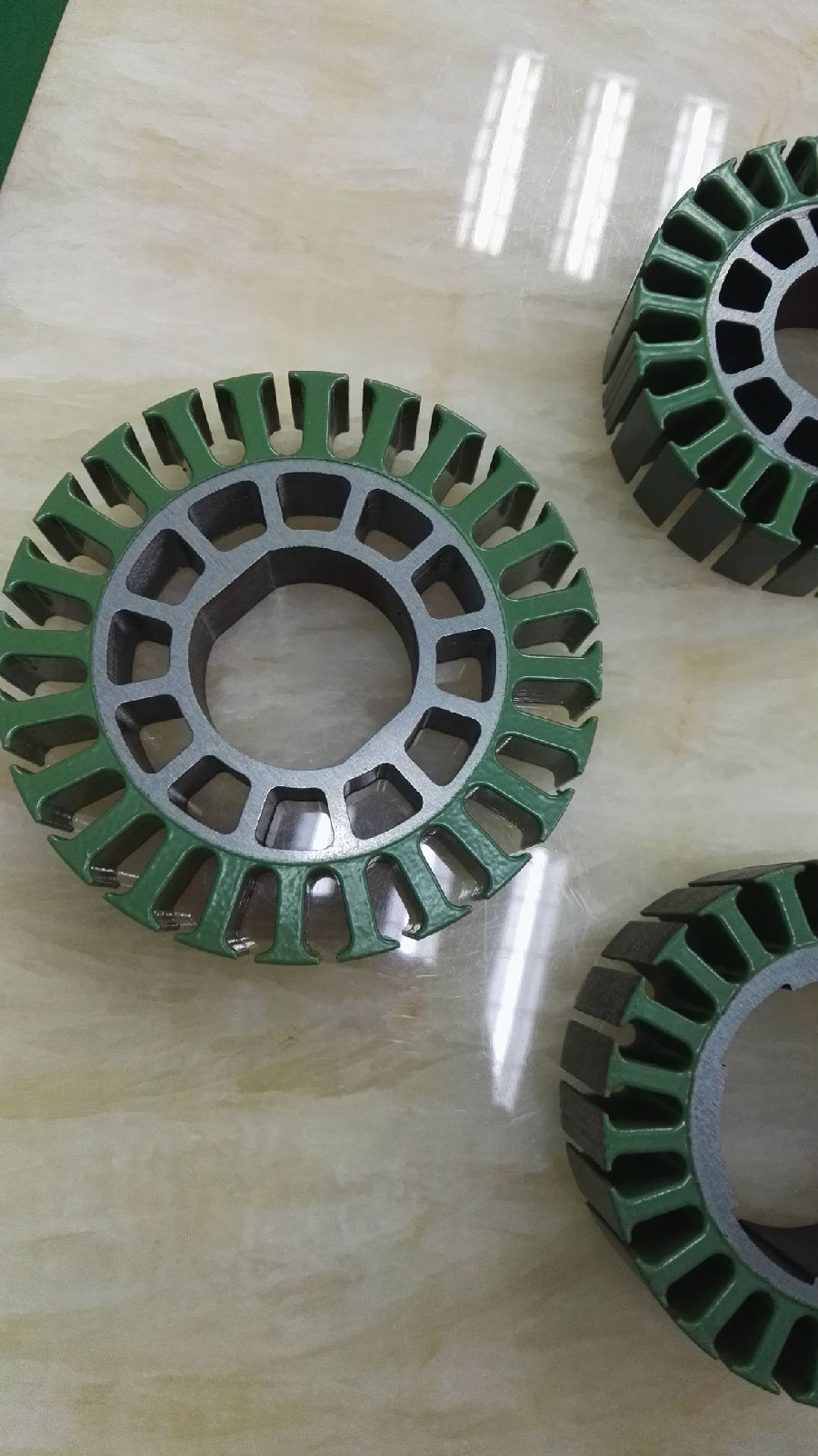

80*28*24slots 0.2mm brushless motor stator core with insulation coating

brushless motor stator core application:

Agriculture uav, industrial drone, helicopter, large quadcopter etc...

Punching technology:

patented lamination without any self-rivet point has been applied for this stators to

get excellent electric performance and lower iron loss . excellent insulation stator epoxy

coating has been applied to ensure its temperature resistance performance and voltage withstand performance.

brushless motor stator core specification:

OD: 80mm

ID: 28mm

Slots No.: 24 teeth

brushless motor Stator Height: to be customized.

Material : 20JNEH1200 0.2mm silicon steel from Japan JFE brand

Temperature grade for the stator epoxy coating: B/H/F

stator coating Color: Blue or Green
